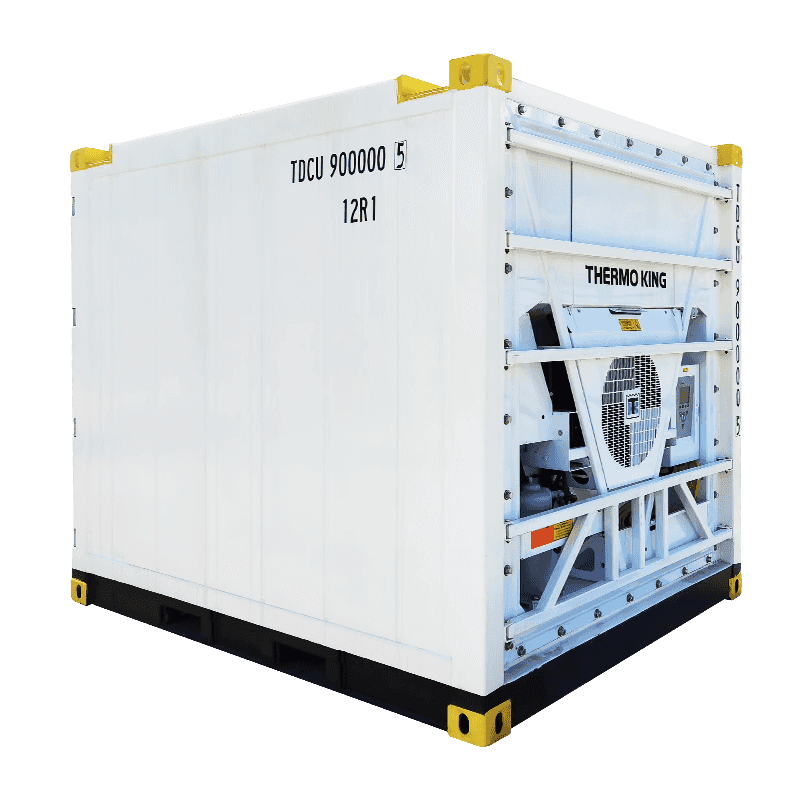

10 Feet Offshore Reefer Container

Product Introduction

This offshore reefer container complies with the DNV 2.7-1 standard for offshore containers. It can be lifted, shipped by sea and transported by road, and resists high salt-spray corrosion. The temperature range typically reaches -20℃, and can be extended to -40℃ on request.

Features

• Outer skin: Marine-grade weathering steel (Q345D/Corten steel) with a full high-salt-spray marine anti-corrosion coating system. The corner castings and main frame are high-strength welded steel structures designed for offshore lifting and stacking loads.
• Insulation core: High-density rigid polyurethane (PU) foam, injected as a single pour, approx. 100 mm wall thickness. Low thermal conductivity eliminates thermal bridging and prevents condensation.
• Interior lining: Stainless steel.
• Floor system: Aluminum T-bar ventilated floor with insulation underneath, allowing cold air to circulate beneath the cargo for uniform temperature throughout the box.
• Door structure: Sandwich insulated construction with continuous low-temperature-resistant rubber gaskets for a fully airtight seal, fitted with marine-grade locking hardware.
• Refrigeration unit end frame: Thermo King unit embedded in the frame, with thermal-break sealing at the unit flange to prevent cooling loss and condensation.

Optional Configurations

• Insulation: PIR flame-retardant foam available to meet offshore fire-protection requirements.
• Interior lining: Food-grade aluminum alloy panels available.
• Generator: Can be fitted on request.
• Refrigeration unit brands: Carrier units available as an alternative to Thermo King.

Applications

• Offshore oil and gas platforms and wind farm O&M platforms: storing and transferring food, reagents and temperature-controlled spare parts
• Remote project sites and island construction sites: constant-temperature frozen storage

FAQ

1. Can a generator be fitted?
Yes.

2. What other refrigeration unit brands are available?
Carrier units.

3. What are the lead time and MOQ?
MOQ is 2 units, and lead time is about 65 days.
